CONCEPT · Compressed air systems

Air preparation.
Made for your system.

Filters, condensate drains, moisture separators and dryers, organised around what your compressed-air system needs.

Explore the range ↓Open full catalogue ↗

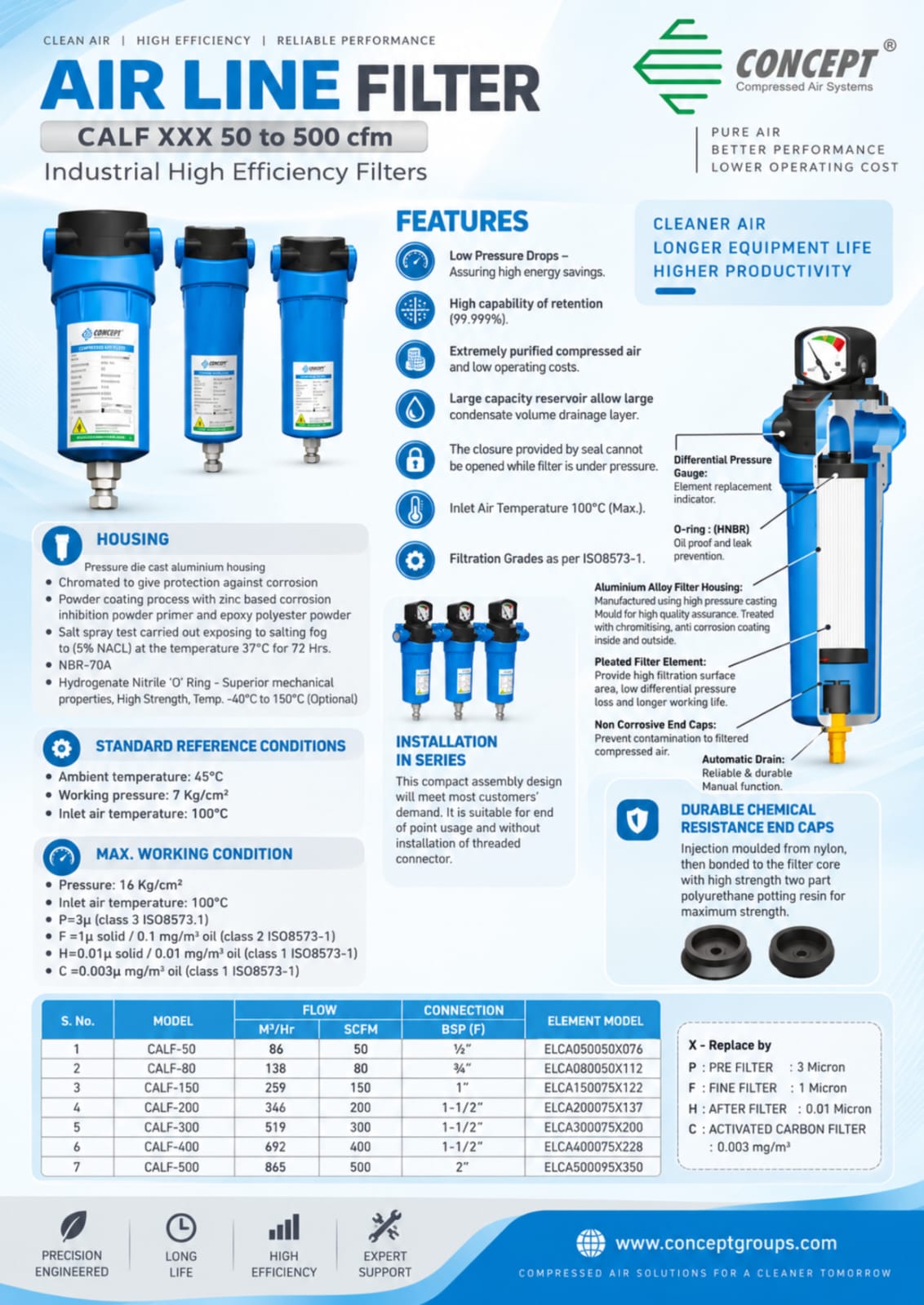

CONCEPT CALF compressed-air line filtersFeatured range · CALF air line filters
Product catalogue

Find your air-system components.

For supply, selection and quotations,
contact info@vayupiping.com.

41 product ranges

CONCEPT Aluminium air line filters - CALF-50 / 80 / 150 / 200 / 300 / 400 / 500
Air line filters

Aluminium air line filters

CALF-50 / 80 / 150 / 200 / 300 / 400 / 500

Compact high-efficiency filters for point-of-use and industrial compressed-air preparation.

Details & specifications
  • 50-500 SCFM compact range in the supplied product sheet
  • P: pre-filter; F: fine filter; H: after-filter; C: activated carbon
  • Maximum working pressure: 16 kg/cm²; maximum inlet air temperature: 100°C
  • Differential pressure indication and automatic condensate drain
Compact CALF range · supplied product sheet
Modelm³/hrSCFMBSP (F)
CALF-508650½
CALF-8013880¾
CALF-1502591501
CALF-2003462001½
CALF-3005193001½
CALF-4006924001½
CALF-5008655002
View CALF product sheet ↗Open catalogue · page 21 ↗
Enquire on WhatsApp Email enquiry
CONCEPT High-pressure air line filters - CHLF series
Air line filters

High-pressure air line filters

CHLF series

Stainless-steel filter housings for higher-pressure compressed-air applications.

Details & specifications
  • SS 304 construction; SS 316 available on request in the catalogue
  • Confirm pressure class, filter grade and end connections before ordering
Open catalogue · page 25 ↗
Enquire on WhatsApp Email enquiry
CONCEPT Automatic drain valves - EDV-16X
Condensate drains

Automatic drain valves

EDV-16X

Timed condensate removal for aftercoolers, receivers, drip legs and moisture separators.

Details & specifications
  • EDV-161 / 162 / 163 / 164 variants
  • 16 kg/cm² maximum working pressure; 2.5 mm orifice
  • Adjustable interval timer, manual test switch and inbuilt strainer
Open catalogue · page 2 ↗
Enquire on WhatsApp Email enquiry
CONCEPT Moisture separator + filter - MSF-16X
Moisture separators

Moisture separator + filter

MSF-16X

Centrifugal separation and filtration for spray painting, powder coating and workshop air.

Details & specifications
  • MSF-161 / 162 / 163 connection variants
  • Powder-coated mild-steel body
  • Automatic, manual and float drain options listed
Open catalogue · page 29 ↗
Enquire on WhatsApp Email enquiry
CONCEPT Desiccant air dryers - dd Amogh 10 / 20 / 30 / 45 / 60 / 80 / 100
Dryers & adsorbers

Desiccant air dryers

dd Amogh 10 / 20 / 30 / 45 / 60 / 80 / 100

Twin-tower desiccant drying for high-purity compressed-air applications.

Details & specifications
  • 10-100 SCFM catalogue range
  • Programmable controller and purge time
  • Inbuilt moisture separator, pre-filter and after-filter
Open catalogue · page 35 ↗
Enquire on WhatsApp Email enquiry
CONCEPT Point-of-use adsorbers - CACA / CPDA
Dryers & adsorbers

Point-of-use adsorbers

CACA / CPDA

Activated-carbon and desiccant adsorbers for local air preparation.

Details & specifications
  • CACA: activated-carbon cartridge for oil-vapour removal
  • CPDA: desiccant cartridge for moisture removal
  • Replaceable cartridge construction
Open catalogue · page 38 ↗
Enquire on WhatsApp Email enquiry
CONCEPT Laser-cutting air preparation - Air preparation system
Dryers & adsorbers

Laser-cutting air preparation

Air preparation system

Coordinated moisture separation, filtration and drying for laser-cutting air supply.

Details & specifications
  • Application-specific air-quality and pressure selection
  • Catalogue contains recommended filtration and dryer arrangements
Open catalogue · page 42 ↗
Enquire on WhatsApp Email enquiry
CONCEPT Manual drains - Manual drain - filter / moisture separator
Accessories

Manual drains

Manual drain - filter / moisture separator

Manual condensate draining for compatible filter and moisture-separator assemblies.

Details & specifications
  • Anodised aluminium construction
  • Catalogue lists ⅜ and ½-inch BSP (M) connections
  • Confirm thread and pressure rating before selection
Open catalogue · page 45 ↗
Enquire on WhatsApp Email enquiry
Selection support

Need help matching a product?

Tell us your application and we’ll help you review the options.

Discuss your requirement ↗
